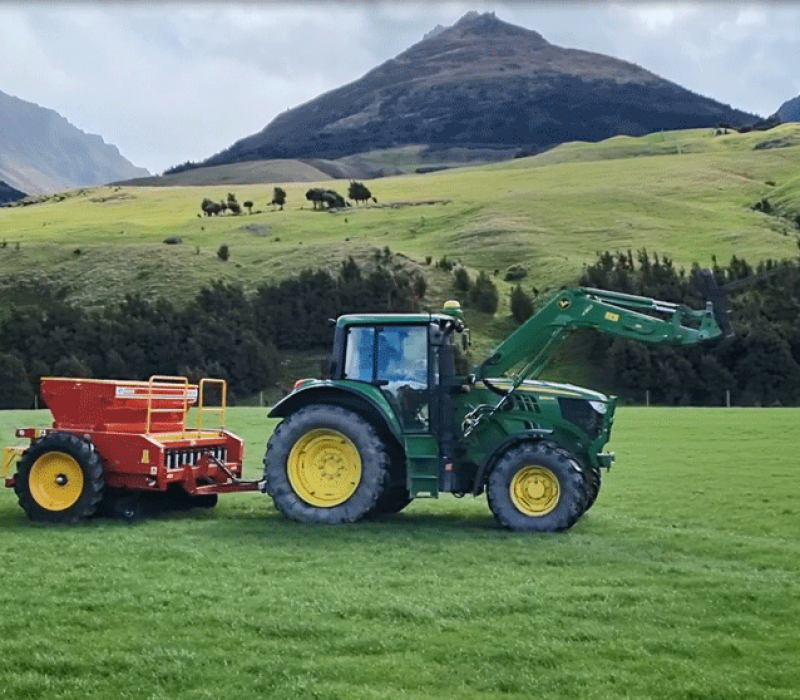

Solid and rugged construction makes it evident that the Enviro 740 is built to last, and with independent triple disc assemblies for maximum ground contact it's excellent for drilling over undulating ground. Adjustable press wheels control the seed depth over the entire sowing width for enhanced soil to seed contact and increased moisture retention to promote germination.
Small to Large
from 100 Ha
Key Features
- Independent drag arms with triple discs and press wheels for each row
- Easy access front and rear loading platforms with safety rails
- 130mm / 5 1/4" or 150mm / 6" row spacing options
- Weather skirts cover seed / fertiliser outlets
- Depth control via the wheel legs and the press wheels
- Stainless steel agitator shafts in boxes
- Accurate and reliable gearbox
- Peg roller seed / fertiliser distribution units
- Weigh kit with electronic scales and hectaremeter
- Sows a variety of seeds and fertiliser
- Free-wheeling hub and safety chains for transport
- 15/17/19/21/23/26 row models
- Tractor grip tyres
Technology
Gravity seed distribution
Our reliable metering system has been utilised on Duncan Drills for years. It is easy to calibrate and use, requires no tractor hydraulics to run it and it is incredibly accurate due to the seeds being metered from individual outlets for each run, with sowing rates of less than 1kg/hectare achievable.
Seed and fertiliser is stored in boxes above the drilling discs and drops into the metering peg roller system for each run, with paired large and fine seed wheels, and flow control flaps to handle different seed sizes and sowing rates.
The metered seed and fertiliser then drops down flexible hoses to be planted.
Each run outlet is metered individually providing a high degree of accuracy. Shutter slides at the top of each metering device are used to control the seed flow entering the metering unit and can also be used to shut off a seed row if it is not required. All the box shafts and drive shafts are made from stainless steel for corrosion resistance and longevity.
The calibration tray collects the seed when calibrating and conveniently is used to cover the metering units to stop any foreign matter entering the metering unit in operation.
A stainless steel agitator shaft runs in the base of each box to eliminate compaction and bridging, and improves the flow of fertiliser and seed into the metering units.
Adjustable flaps control the outlet flow of seed and fertiliser from the metering unit.
Our system of dual large and fine metering wheels allow for a wide range of seed types and fertilisers to be used. Disconnecting the large wheel with the supplied tool lets you sow small seeds at very low rates under 1kg /hectare.
Engage the large wheel for larger cereal or grass seeds and fertilisers at high rates, still with a high degree of accuracy.
Calibration App
Use the Duncan Seed Drill app on your phone for easy and accurate job configuration and calibration of any new or existing Duncan Renovator or Duncan Enviro drill, and take your drilling operations to the next level of productivity.
The Duncan seed drill app contains step-by-step user guides for making calibration and mechanical adjustments to your drill. Great for any new operator or if you're just a bit rusty yourself!
Calibrate multiple machines with the app, and get every operator set up with it too so they can do calibrations from their own phone.
Calibrating a ground drive drill with seed or fertiliser will display the required mechanical settings.
Connect wirelessly to a Duncan E-Drive drill to set up the sowing rates and run calibrations while you are right beside the drill.
Triple disc technolgy
Has an independent 400mm diameter fluted opening disc, mounted well forward of each double disc assembly, which allows the drill to break into extremely hard ground and cut trash.
The double disc setup follows directly behind the opening disc, holding the slot open while the seed and fertiliser is placed into the slot.
The sowing depth is accurately controlled by a following press wheel, which also closes the slot. The depth setting is individually set on each press wheel.
Enviro 740 Specifications
Rows | 15 | 17 | 19 | 21 | 23 | 26 |
---|---|---|---|---|---|---|
Weight (kg) | 2730 | 3080 | 3485 | 3850 | 4200 | 4725 |
Sowing width (mm) | 2250 | 2210 | 2850 | 2835 | 3450 | 3380 |
Overall width (mm) | 3284 | 3284 | 3884 | 3884 | 4644 | 4644 |
Overall length (mm) | 3750 | 3750 | 3750 | 3750 | 3750 | 3750 |
Height (mm) | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
Box capacities (l) | 349 | 349 | 443 | 443 | 538 | 538 |
Row spacing (mm) | 150 | 130 | 150 | 135 | 150 | 130 |
Recommended min tractor HP | 100 | 100 | 100 | 100 | 100 | 100 |
